A patch cable has two ends. One end connects to a switch. The destination of the other end determines how the cable should be routed, managed, and serviced.

Learn the Method View Neat-Patch Solutions

The Two-End Principle

Start With the Connection, Not the Cable Bundle

Cable management becomes simple when the network is reduced to its basic connection. In an Ethernet access network, one end of the patch cable connects to a switch. The other end leads to one of three routing environments: the LAN, a server or rack-mounted device, or the network backbone.

Identify the destination first. The correct cable length, pathway, and management method follow from that decision.

Three Environments

Every Connection Has a Defined Path

The equipment changes, but the engineering question remains the same: where is the other end going?

01

The LAN

Switch to Patch Panel

In a LAN environment, the patch cable runs from the switch to the patch panel. Permanent horizontal cabling continues from the patch panel to wall outlets serving workstations, phones, wireless access points, cameras, printers, and other network devices.

This predictable geometry is where 2-foot patch cables have a decisive advantage. Arrange the switch and patch panel in matching 24-port groups with a Neat-Patch cable manager between them, and every connection follows the same short lateral path. The service loop stays inside the manager in a broad, controlled arc that supports CAT6 bend-radius compliance instead of becoming a compressed bundle on the rack face.

The result: a switch, a patch panel, a Neat-Patch cable manager, and 2-foot patch cables work as one system. No cable ties are needed. The rack remains dense, open to airflow, easy to trace and service, and organized well enough to look like a work of art.

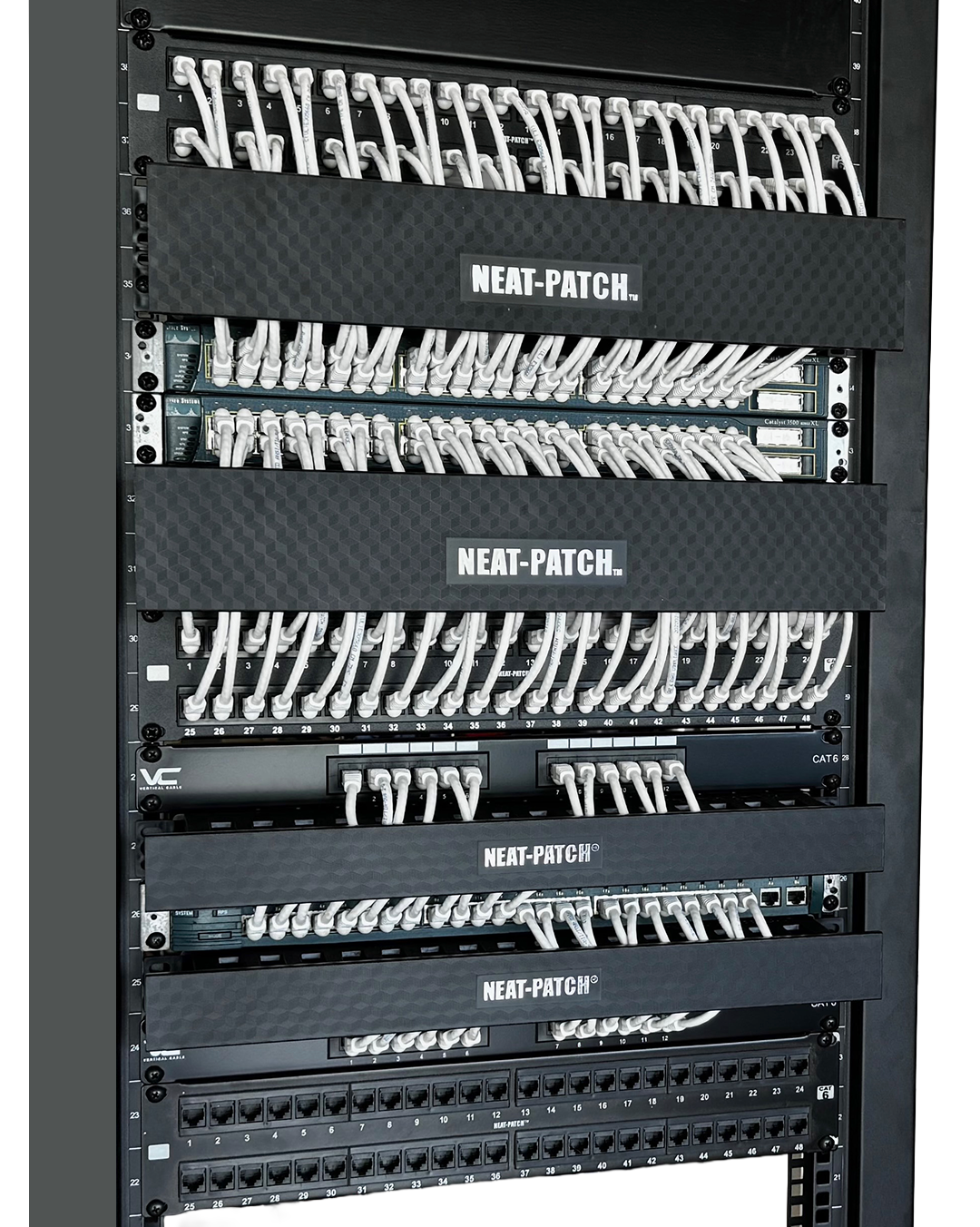

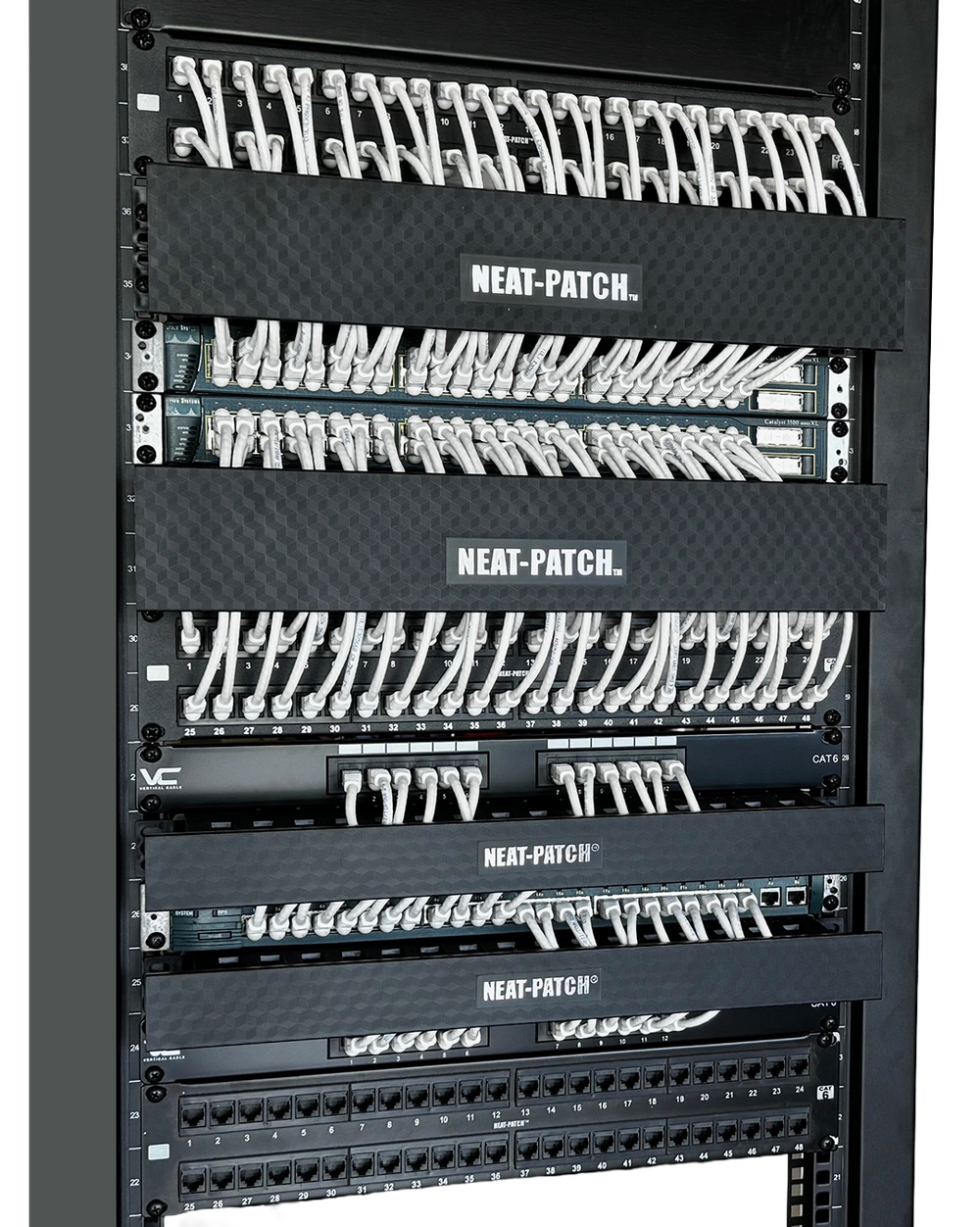

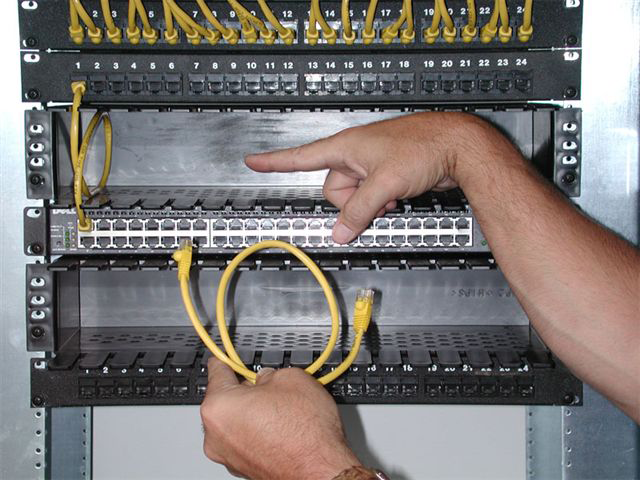

LAN rack using Neat-Patch cable managers and two-foot patch cables
02

The Server Rack

Switch to Server Equipment

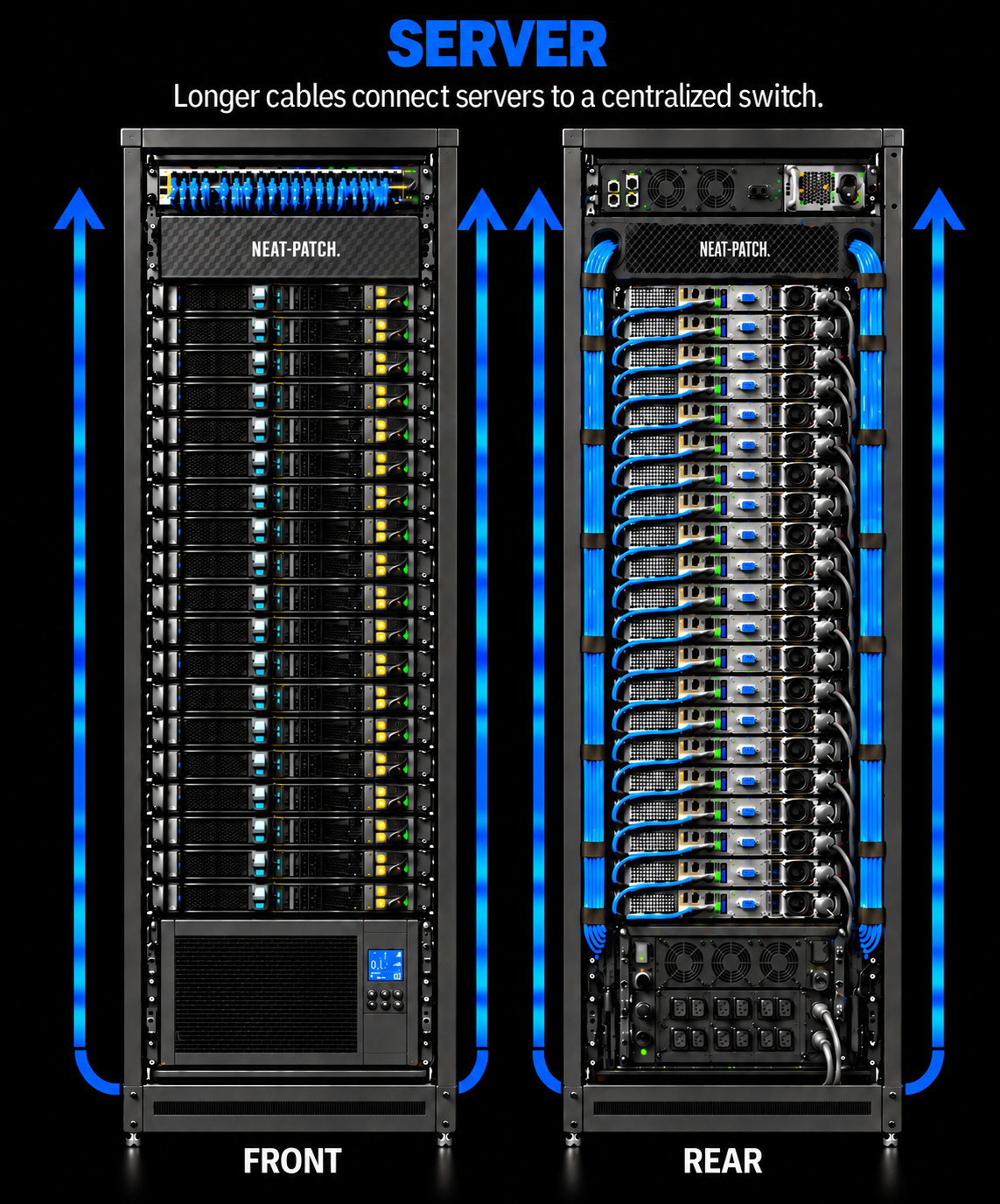

In a server rack, the other end terminates directly at a server, storage system, or other rack-mounted network equipment. The Ethernet switch is commonly located near the top of the rack, while server cables travel vertically along the sides before entering the switch area.

These cable lengths are less predictable because the equipment may occupy different rack-unit positions. The goal is controlled vertical routing, protected service loops, and unobstructed access to fans, power supplies, rails, and removable equipment.

The result: a serviceable rack that protects airflow without forcing every connection into the same cable length.
03

The Network Backbone

Access Switch to Core Network

Access switches in telecommunications closets, commonly called IDFs, connect through fiber or high-speed copper uplinks to the core or distribution network in the main equipment room, commonly called the MDF.

The backbone carries the combined traffic from individual access switches toward servers, firewalls, internet connections, other buildings, and remote locations. Connections inside a building are part of the LAN backbone. The WAN begins when the network extends beyond the local building or campus.

The result: clearly identified uplinks, protected bend radius, proper strain relief, and a backbone pathway separated from ordinary workstation patching.
Rear cable pathways supporting backbone and longer network connections

The Neat-Patch Way

Prevent the Spaghetti Mess Before It Starts

Good cable management isn’t the art of hiding excess cable. It’s the discipline of controlling the rack layout and cable pathway before the first patch cord is installed.

1

Design Around the Switch

The switch is the common point. Its location determines the shortest practical path to every destination.

2

Use Predictable Cycles

Organize LAN connections around repeatable 24-port and 48-port switching cycles.

3

Standardize Cable Length

Use 2-foot CAT6 patch cables for adjacent LAN connections instead of storing unnecessary cable.

4

Protect the Service Loop

Store controlled slack inside the manager with smooth geometry and proper bend radius.

5

Preserve Rack Density

Use 1U or 2U horizontal management without surrendering valuable space to bulky finger duct.

6

Keep Every Port Serviceable

Moves, additions, and changes should never require pulling apart neighboring cable bundles.

Why Conventional Methods Fail

Containing Excess Cable Is Not the Same as Managing It

Bulky Finger-Duct Approach

  • Starts with excess cable
  • Hides accumulated slack
  • Consumes rack space
  • Buried cables become harder to trace
  • Congestion increases with every change

The Neat-Patch Method

  • Starts with the shortest practical cable
  • Controls the remaining service loop
  • Preserves rack density and airflow
  • Keeps ports visible and accessible
  • Repeats cleanly from rack to rack
“The smartest cable-management system is the one that eliminates unnecessary cable before it ever enters the rack.”

Customer Installations

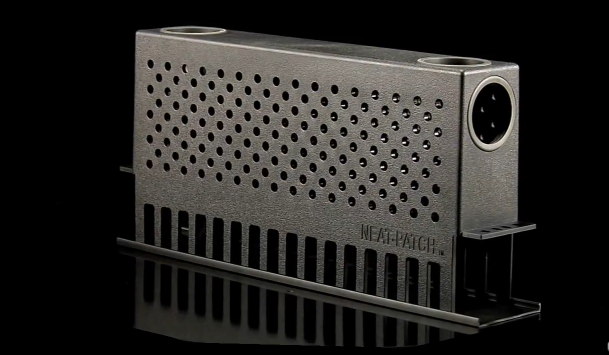

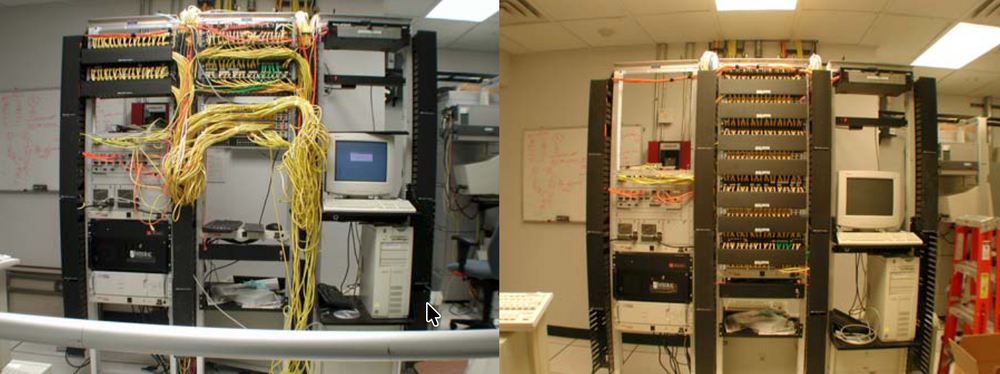

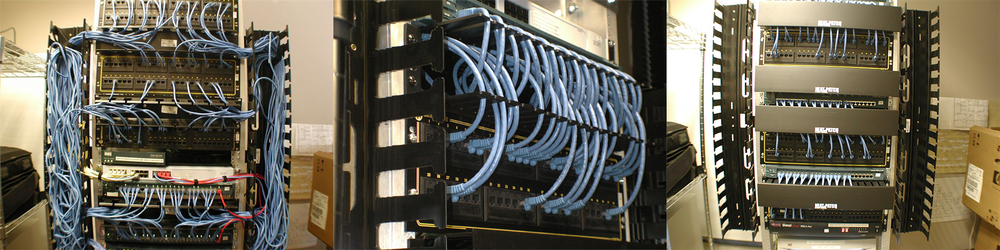

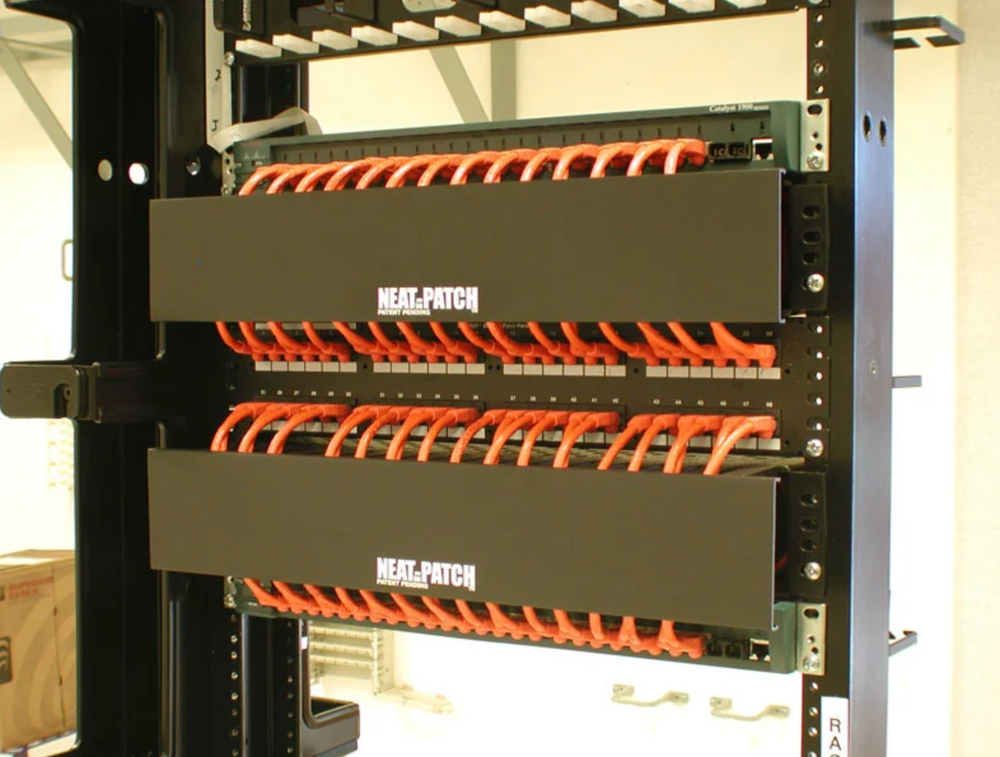

Proof Is in the Rack

These installations show what happens when cable length, switch placement, rack density, and service access are treated as one system.

Engineered Solutions

Build the Switching Cycle as a System

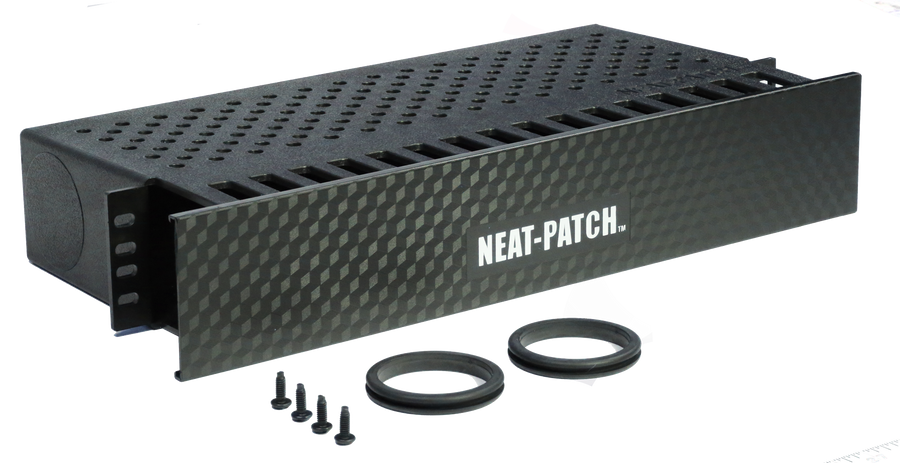

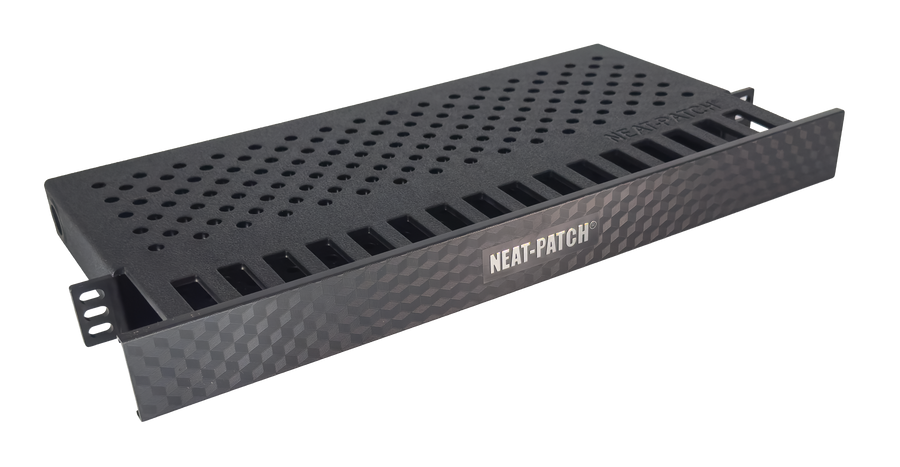

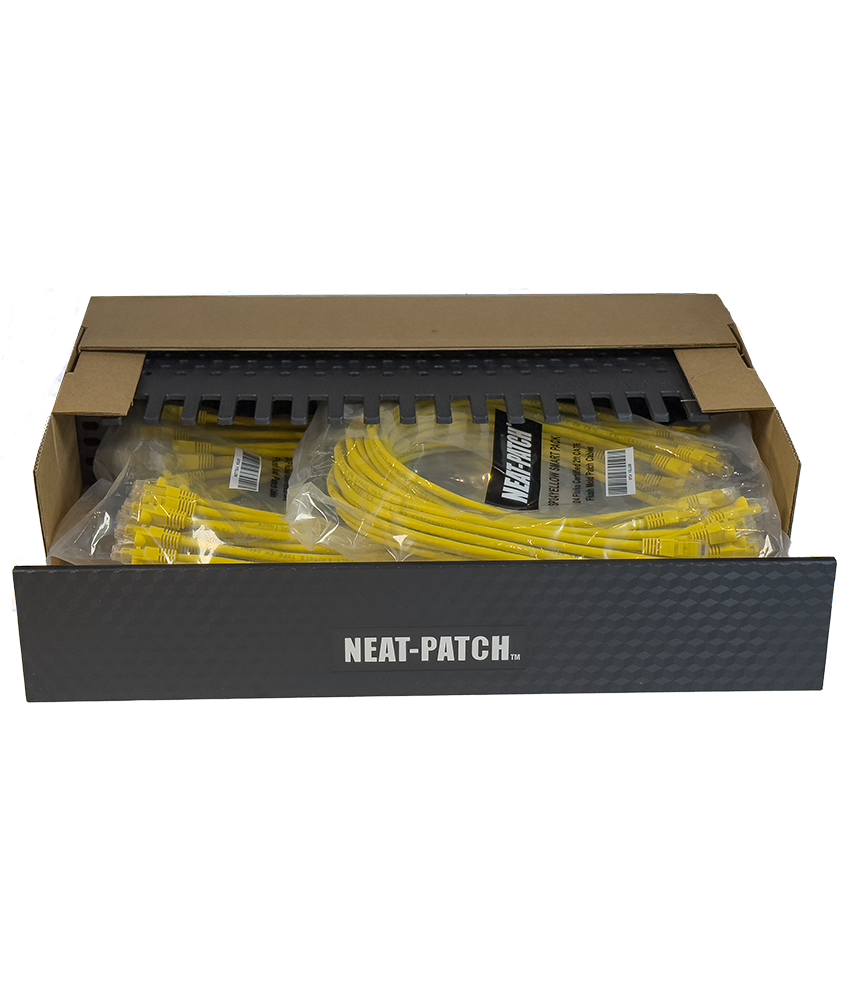

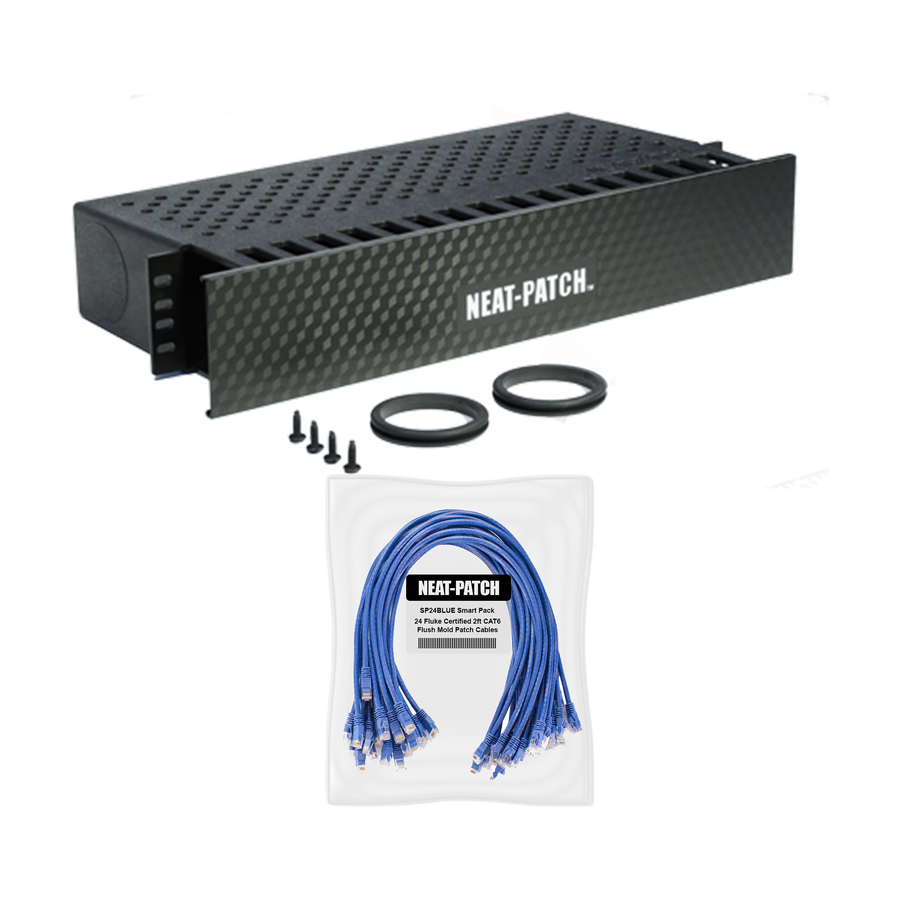

Choose the 1U or 2U manager for the required capacity. Add 2-foot CAT6 cables when the application is an adjacent switch-to-patch-panel LAN connection.

Technical FAQ

Network Cable Management Questions

Why are 2-foot patch cables effective in a LAN rack?

They provide enough reach for adjacent switch-to-patch-panel connections across a standard 19-inch rack while leaving only a controlled service loop.

Should every network connection use a 2-foot cable?

No. Two-foot cables are ideal for predictable adjacent LAN connections. Servers, backbone uplinks, and equipment at different rack positions require lengths appropriate to their actual pathways.

Why avoid cable ties in the active patching field?

Cable ties bind unrelated circuits together, complicate moves and changes, and can compress cable bundles. A properly designed switching cycle remains organized without them.

How does cable management affect airflow?

Controlling cable length and routing keeps cable mass away from switch ventilation, reduces congestion, and maintains clearer cooling paths through the rack.

What is the difference between the LAN backbone and the WAN?

The LAN backbone connects access closets to the core network within a building or campus. The WAN connects the local network to remote buildings, branches, data centers, or service providers.
